Navigation instruments

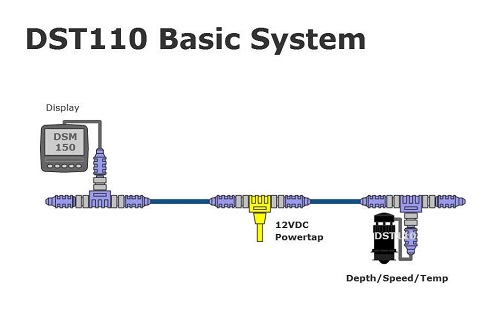

DST110

Maretron's DST110 Smart retractable Depth/Speed/Temperature Triducer, delivers precise digital depth, accurate speed and exact water temperature even at speeds above 40 knots - all with no programming or calibration necessary. Its patented Smart sensor technology, retractable and removable sensor, and NMEA 2000® network connectivity make the DST110 easy to interpret, easy to install and connect with other navigation equipment, and easy to maintain.

The DST110 measures precise water depth from 0.4m to 100m with a wide beam width and is tolerant to most deadrise angles. It reads water temperature from -10°C to +40°C at ±1.0°C accuracy, and accurate speed from 1 to 50 knots. User customizable calibrations for speed and temperature allow you to adjust speed and temperature indications for your installation. At 235kHz it can be used with a fish finder as an ideal navigation tool for sport or commercial fishing vessels - or with sailing vessels of all sizes.

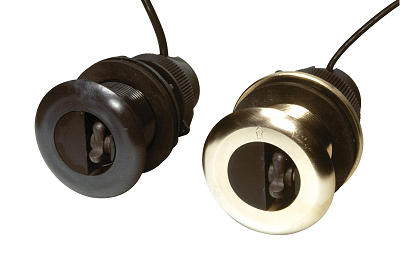

The DST110's plastic, bronze, or stainless steel housing choices are compatible with any hull material. It includes a blank plug to replace its sensor unit when the vessel will be docked for extended periods or trailered. This prevents damage to the sensor and reduces fouling growth.

Maretron's DST110 is CE compliant (IEC60945) and is manufactured to the highest quality standards under ISO9K/2K procedures. It's compact, waterproof housing will provide years of reliable performance, making it the smart choice in marine sensing.



Features:

  • Water depth
  • Speed through water
  • Water temperature

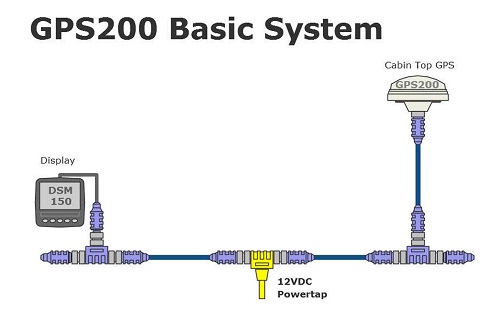

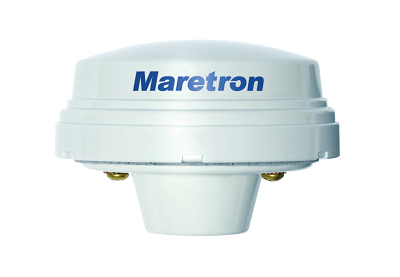

GPS200

Maretron's GPS200 is a state-of-the-art 99 channel GPS/GLONASS antenna and receiver capable of providing ten position fixes per second, accurate boat speed ten times per second, and precision time once per second. An additional benefit of the GPS200 is that it broadcasts precision magnetic variation information using the current position and world magnetic model (WMM-2015).

The GPS200 antenna/receiver is a plug-and-play device that is fully compliant and certified to the NMEA 2000® Standard. It will directly connect to any NMEA 2000® network and communicate with navigational software, chart plotters, autopilots and dedicated instrument displays - such as Maretron's DSM250 / DSM410 color graphics displays, and its compact, waterproof housing provides years of reliable performance.

The GPS200 automatically decodes GPS correction signals from Satellite Based Augmentation Systems (SBAS) including the North American Wide Area Augmentation System (WAAS), the European Geostationary Navigation Overlay System (EGNOS), or the Asian Multifunctional Transport Satellite-based Augmentation System (MSAS) to provide better than 2.5m accuracy.

The GPS200 is easily mounted to any 1" standard marine mount with its standard 1"-14 male threads. It can also be mounted directly to a deck, or even (due to its unprecedented sensitivity) underneath a fiberglass deck.

Features:

  • Latitude
  • Longitude
  • Time
  • Date
  • Course over ground
  • Speed over ground
  • Magnetic variation
  • Satellite status

Applications:

  • Navigation
  • Autopilot
  • AIS
  • Vessel Data Recorder (VDR100) Time Base

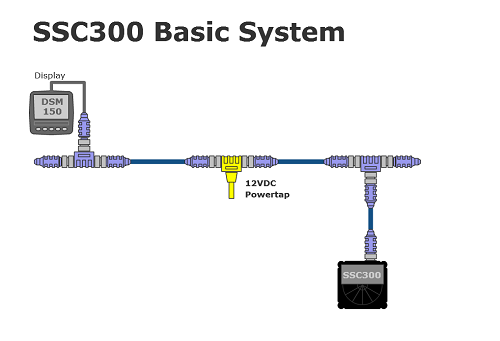

SSC300

Maretron's SSC300, implementing the second generation of Maretron's award-wining compass technology, is a solid state, rate gyro electronic compass that provides better than 0.7° heading accuracy through ±45° of roll and pitch angle, and better than 1° roll and pitch accuracy in static conditions. Each SSC300 is factory calibrated for maximum accuracy. It delivers precise, reliable heading information ten times per second, plus vessel attitude including pitch and roll readings once per second. A micromachined 3-axis rate gyro is used, in conjunction with a 3-axis accelerometer, by advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas, making it an ideal heading sensor for autopilot or radar overlay applications.

Maretron's SSC300 is certified to the NMEA 2000® network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000® network and with the optional NMEA 0183 cable accessory, with NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays - including Maretron's N2KView® vessel monitoring system, or Maretron's DSM250 / DSM410 color graphics displays.

The SSC300 can be automatically calibrated for deviation. Its dynamic accuracy is improved with advanced digital filtering of the 3-axis magnetometer, 3-axis accelerometer and rate gyro.

  • Better than 0.7° heading accuracy in static conditions
  • Better than 1.5° heading accuracy in dynamic conditions
  • Better than 1°/second rate of turn in
  • Better than 1° pitch/roll accuracy
  • Three axis magnetometer, three axis rate gyro, and three axis accelerometer
  • Outputs NMEA 0183 and NMEA 2000 data simultanously
  • IP67 waterproof enclosure

Applications:

  • Navigation
  • Autopilot
  • Radar stabilization
  • Satellite antenna stabilization
  • Swing meter
